Containers and storage

0

This container is equipped with a unit which in addition to an outside application may also be placed in a standard sea container.

The unit is dotated with:

- electrical implant outside the unit;

- Lighting 1 x 36 watt.;

- Socket 16 A.;

- the floor is made with a vynil flooring;

- the roof has a finishing in galvanized steel plate 2 mm.;

- forklift pockets;

- walls and roof are executed in sandwich panels, Rc = 1,85;

- the supporting structure is made up of a 1.5 mm thick galvanized structure.;

Dimensions of the units are:

Internal: 2.620 x 2.160 x 2.110 (LxWxH)

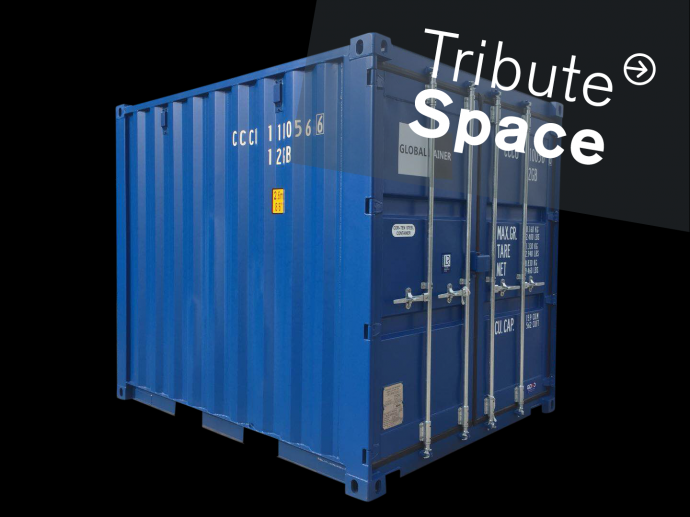

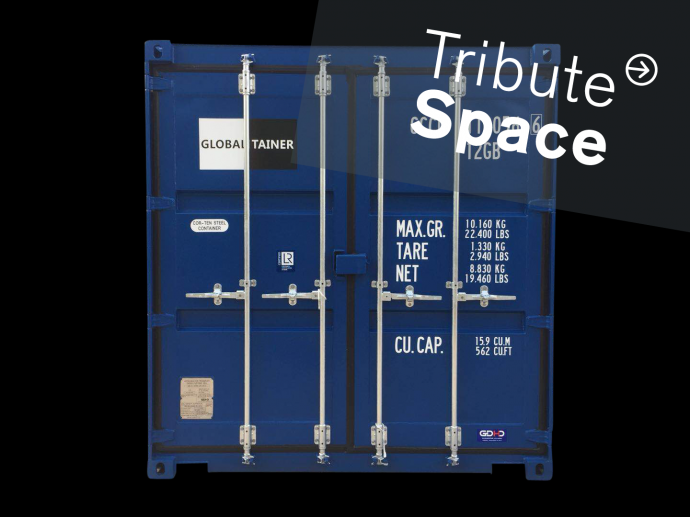

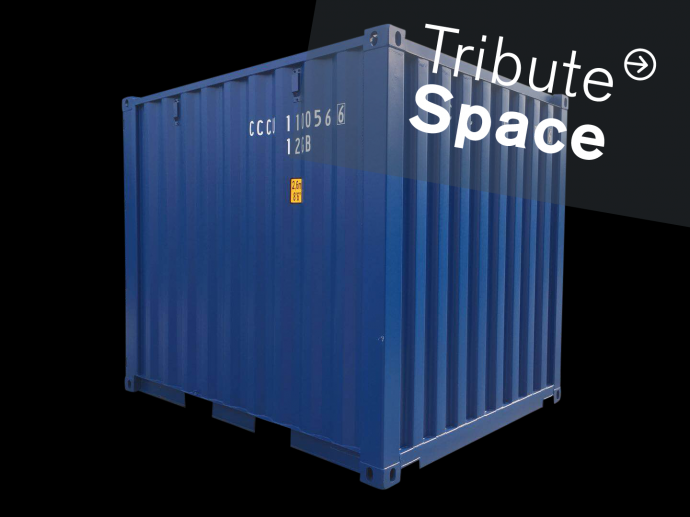

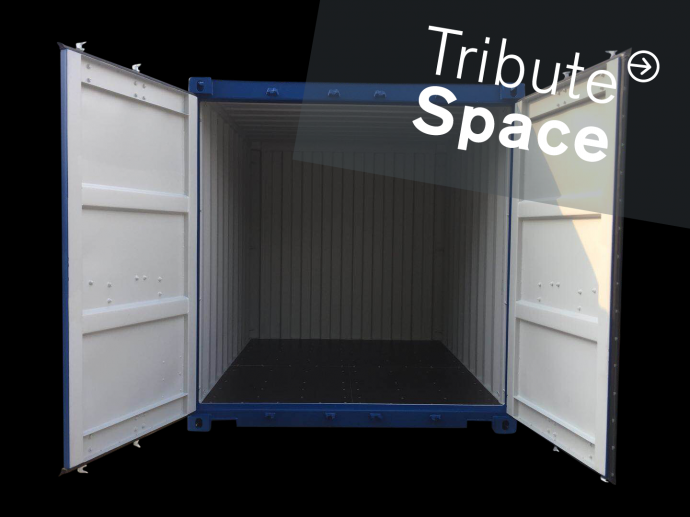

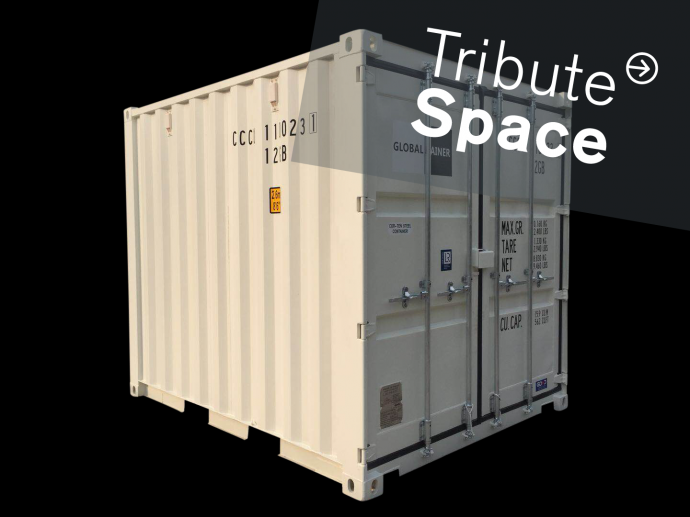

Container type: 10ft standaard

Ref.CR

Outside measurements (m)

Length                 Width                   Height

2,991                     2,438                     2,591

Inside measurements (m)

Length                 Width                   Height

2,84                       2,35                       2,39

Doorway

Width                   Height

2,342                     2,28

Gross weight                    Net weight                        Tare weight

10160                                   8860                                      1300

Content                              15,96

All measurements and weights are indicativ.

This container is equipped with a unit which in addition to an outside application may also be placed in a standard sea container.

The unit is dotated with:

- electrical implant outside the unit;

- Lighting 1 x 36 watt.;

- Socket 16 A.;

- the floor is made with a vynil flooring;

- the roof has a finishing in galvanized steel plate 2 mm.;

- forklift pockets;

- walls and roof are executed in sandwich panels, Rc = 1,85;

- the supporting structure is made up of a 1.5 mm thick galvanized structure.;

Dimensions of the units are:

Internal: 2.620 x 2.160 x 2.110 (LxWxH)

Container type: 10ft standaard

Ref.CR

Outside measurements (m)

Length                 Width                   Height

6,058                     2,438                     2,591

Inside measurements (m)

Length                 Width                   Height

5,844                     2,35                       2,39

Doorway

Width                   Height

2,342                     2,28

Gross weight                    Net weight                        Tare weight

24.000                                  21.690                                  2.310

Content                              32,80

All measurements and weights are indicativ.

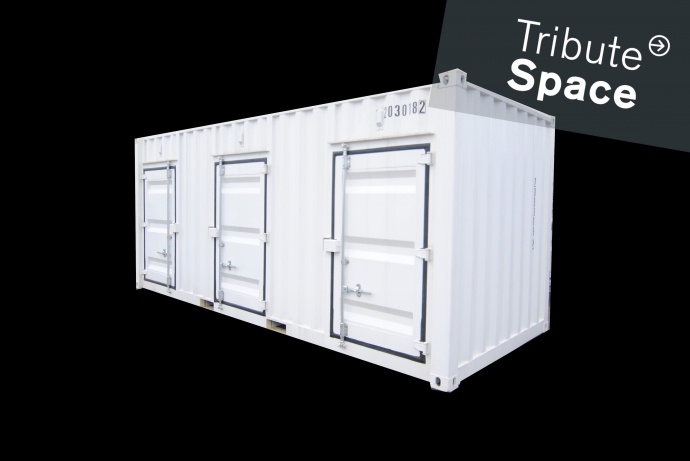

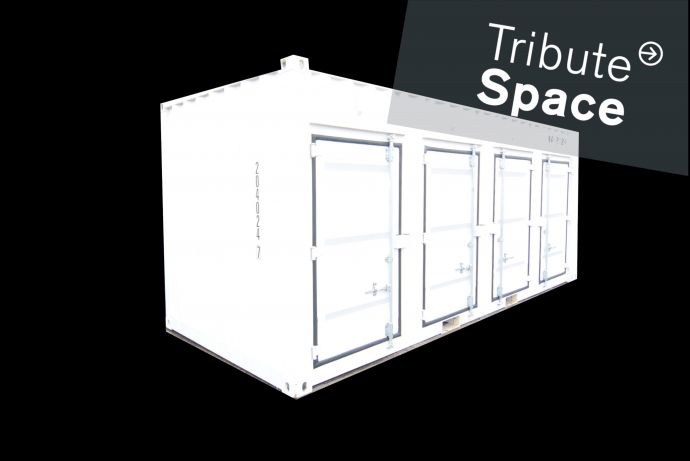

These storage containers are available in various designs. They are simple in structure and easy to move; an ideal solution that can be used for extra space, both indoors and outdoors. Thanks to their construction, the smallest container can be constructed with 2 man in approx. 30 minutes. Generally, a spanner wrench and a screwdriver are sufficient.

Specifications:

-       Walls of 0,75 mm thick sheet in galvanized steel;

-       Frame of 2 mm thick sheet in galvanized steel;

-       Transit of  1.930 x 1.930 mm if the doors are fully opened;

-       35 mm thick wooden floor;

-       Doors are supplied with door handle and lock;

Dimensions: 4.000 x 2.200 x 2.200 mm

Weight: 568 kg

Floor: Wood

PRICES ARE EXCLUSIVE VAT, TRANSPORT RATES AND MOUNTING COSTS

Ref. HS-223

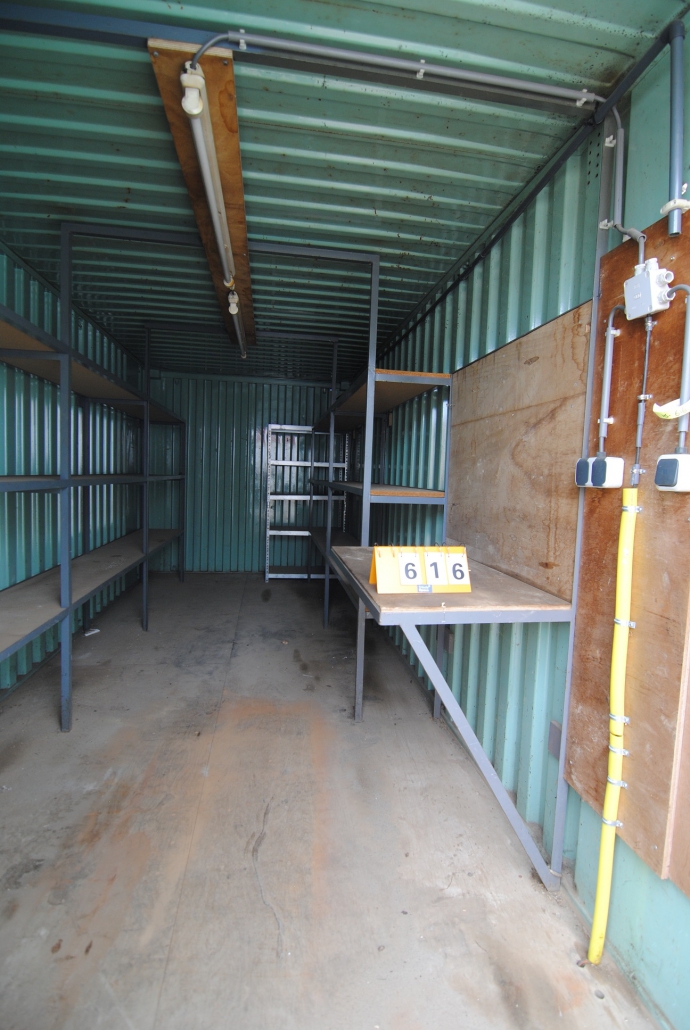

Your container fitted within minutes with a removable shelf system, without the use of tools?

The shelving system of the Container Bracket Company has the solution for you.

This system uses the standard Hashing Eyes, present in each container.

With four pieces of holders and six standard scaffold planks you have a system that keeps your container free of holes and improves its employability.

Are you interested? More information can be found on the following website:  http://www.containerbracket.nl/

Please also take a look at the movie in which this system shows its simplicity.

0

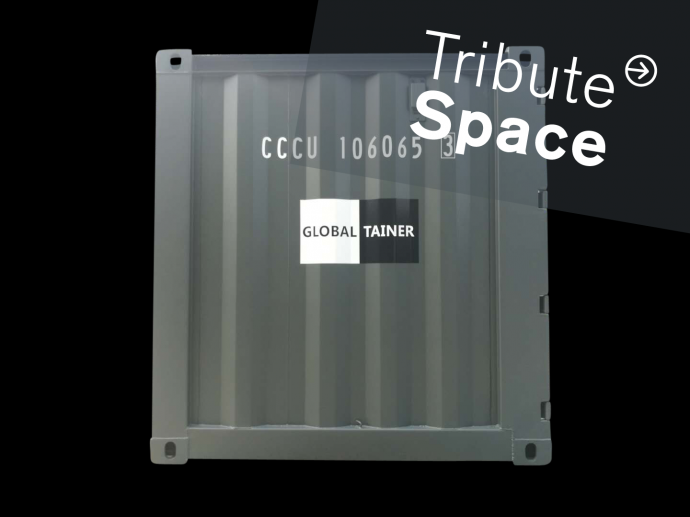

Whether it’s your company logo or customized lettering…….everything is possible. Containers in the offshore are often equipped with lettering or stickers to indicate from which company it’s coming or to indicate what the content is. We can deliver the stickers or paste the stickers on location. Good communication, fast delivery, weather-resistant quality and service are our priority. Please contact us, we would like to inform you.
